Architectural Features

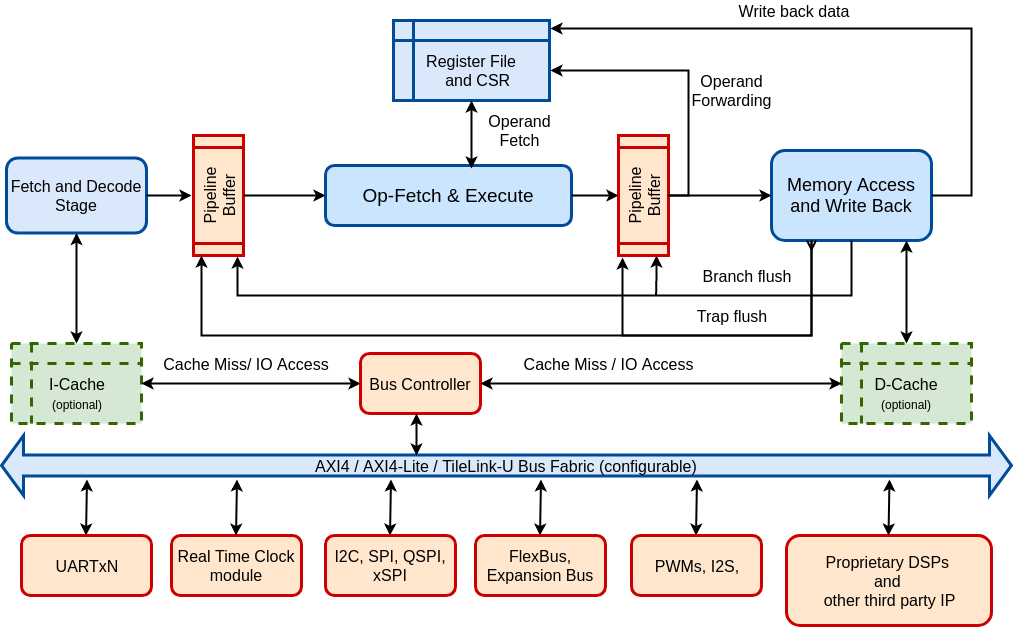

  • In-order 3 stage 32/64 bit microcontroller supporting a subset of RISC-V ISA.
  • Low area and power consumption - operational frequency of less than 200MHz on silicon.
  • Optimized variants for FPGA based soft-cores.
  • AXI4/AXI4-Lite/TileLink peripherals supported.
  • Positioned against ARM's M class cores.

Basic Specifications

  • Open source IP supporting RV32/64 - IMAC.
  • Optional Direct-mapped caches for instruction and data.
  • Supports Machine and User-modes only.
  • User-mode trap handling is optional.
  • Push button flow to generate variants and subsets of ISA.
  • Optimized sequential Multiplier and Divider for ASICs and FPGAs.
  • 41.30.6:8880/
  • OpenOCD based SoC debug support through JTAG.
  • OS Ports: FreeRTOS, Zephyr.
FPGA Results

This implementation has also been burnt on FPGA's and it consumes less than 3K LUT's on a 7-series Xilinx FPGA.
